Ford F150 2004+ Center Support Bearing Spacer Kit (SP001A0/1/2/3)

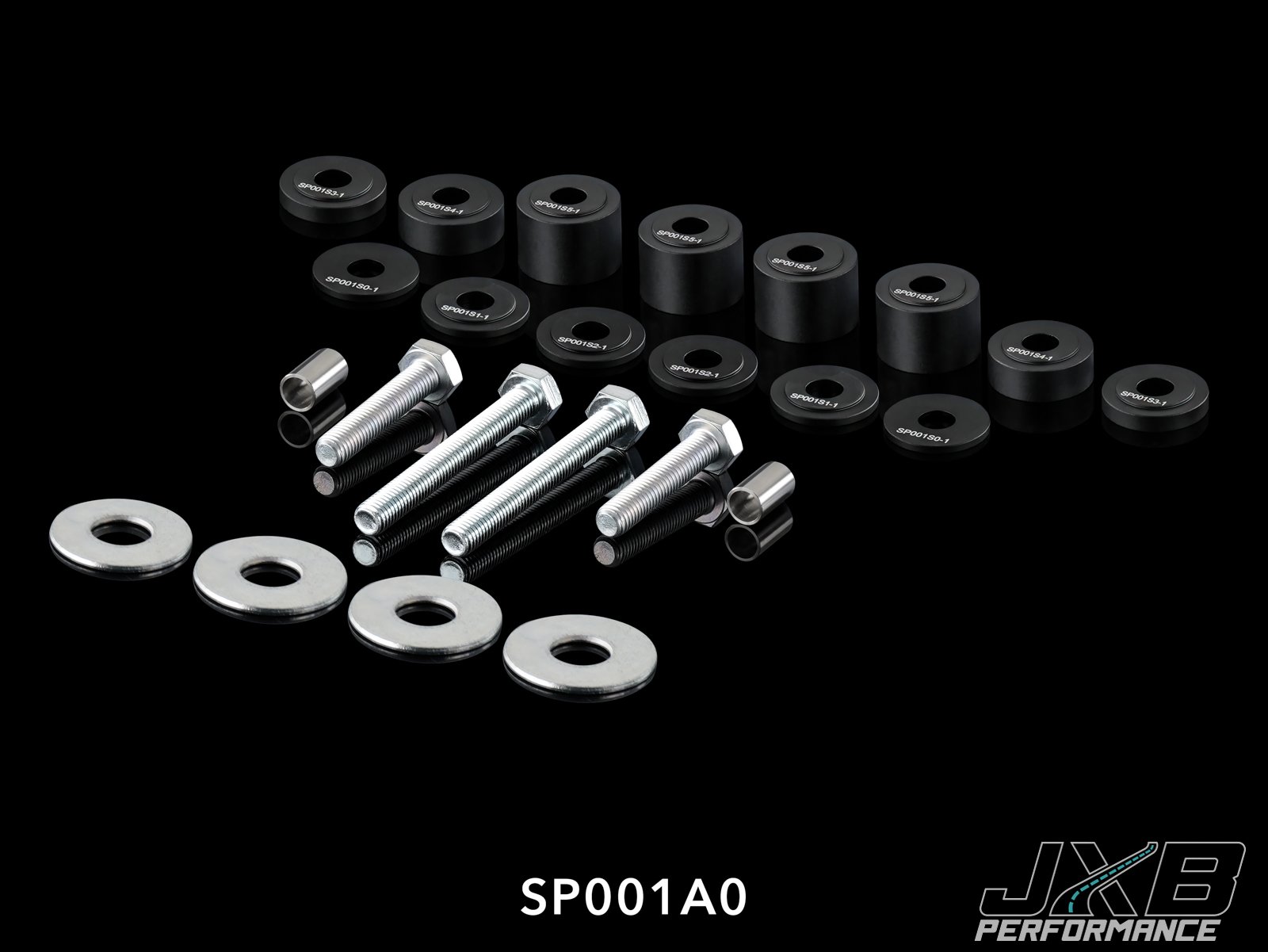

SP001A0 - Up to 4” Rear Lift - For use with JXB driveshaft carriers

• 2 female 2.5 mm bottom starter spacers

• 2 male 2.5 mm top finishing spacers

• 2 male/female 2.5 mm spacers

• 2 male/female 5 mm spacers

• 2 male/female 10 mm spacers

• 4 male/female 20 mm spacers

• 2 shorter 70 mm bolts

• 2 longer 100 mm bolts

• 2 bolt sleeves that allow installation with shoulder bolts that come with JXB driveshaft carriers

SP001A1 - 4-7” Rear Lift - For use with JXB driveshaft carriers

• 2 female 2.5 mm bottom starter spacers

• 2 male 2.5 mm top finishing spacers

• 2 male/female 2.5 mm spacers

• 2 male/female 5 mm spacers

• 2 male/female 10 mm spacers

• 8 male/female 20 mm spacers

• 2 shorter 130 mm bolts

• 2 longer 160 mm bolts

• 2 bolt sleeves that allow installation with shoulder bolts that come with JXB driveshaft carriers

Please note the SP001A0 and SP001A1 products can be purchased together with the JXB driveshaft carrier upgrade here using the dropdown box to add them.

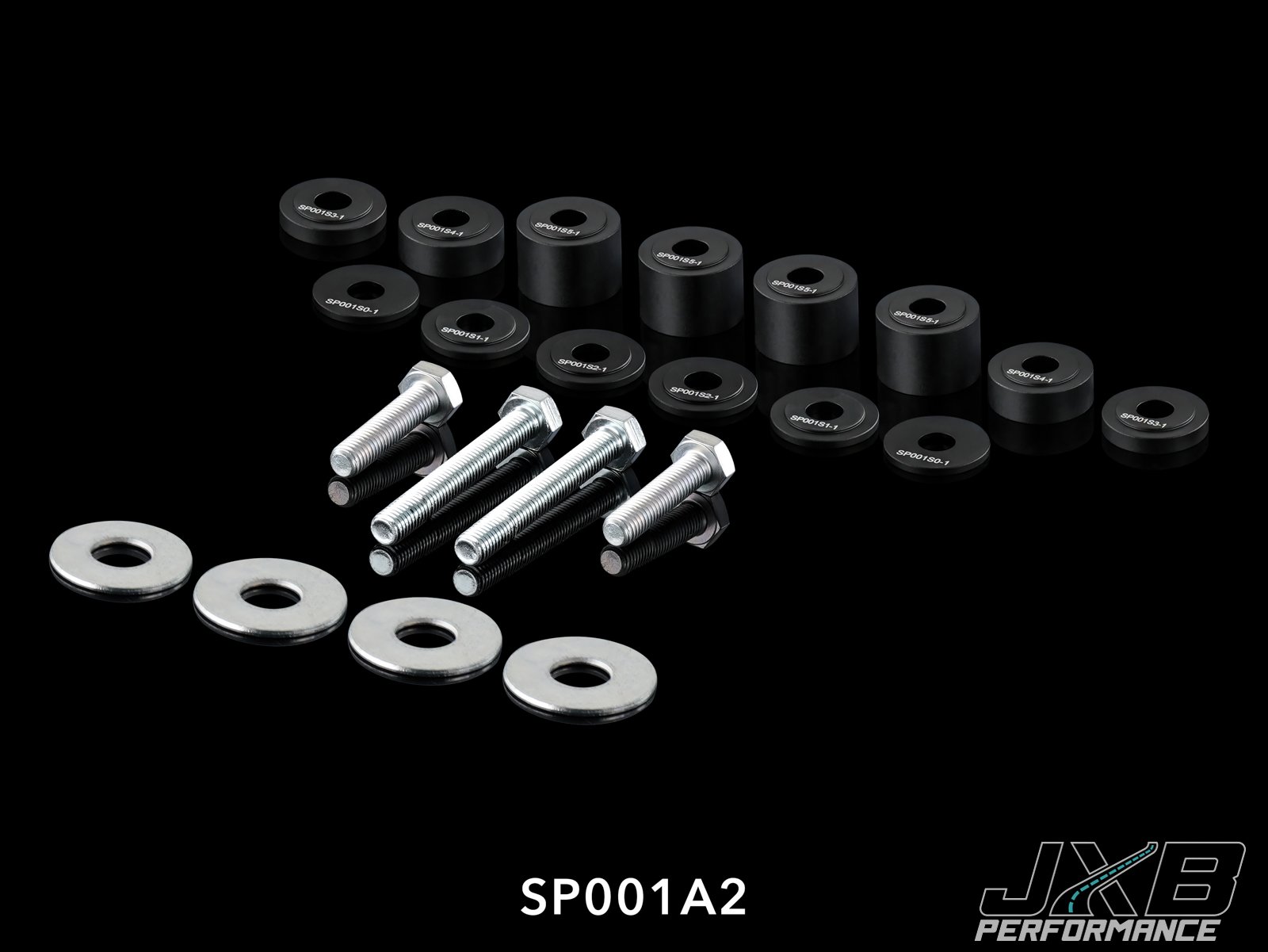

SP001A2 - Up to 4” Rear Lift - For use with OEM center support bearings

• 2 female 2.5 mm bottom starter spacers

• 2 male 2.5 mm top finishing spacers

• 2 male/female 2.5 mm spacers

• 2 male/female 5 mm spacers

• 2 male/female 10 mm spacers

• 4 male/female 20 mm spacers

• 2 shorter 50 mm bolts

• 2 longer 80 mm bolts

SP001A3 - 4-7” Rear Lift - For use with OEM center support bearings

• 2 female 2.5 mm bottom starter spacers

• 2 male 2.5 mm top finishing spacers

• 2 male/female 2.5 mm spacers

• 2 male/female 5 mm spacers

• 2 male/female 10 mm spacers

• 8 male/female 20 mm spacers

• 2 shorter 110 mm bolts

• 2 longer 140 mm bolts

• 2004+ Ford F150

SP001A0 - Up to 4” rear lift - for JXB driveshaft carriers
SP001A1 - 4-7” rear lift - for JXB driveshaft carriers
SP001A2 - Up to 4” Rear Lift - for OEM center support bearings
SP001A3 - 4-7” rear lift - for OEM center support bearings
